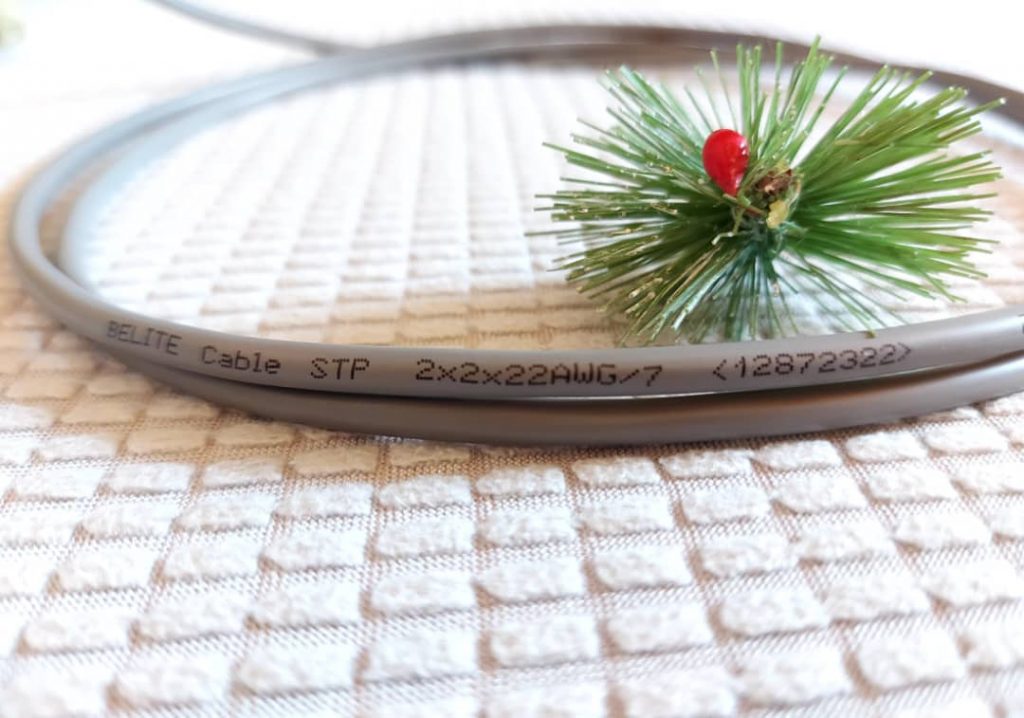

Screen Twisted Pair Cabling For New HVAC Technology

Belite Screened Twisted Pair Cable being the essential part for VRF/VRV system Installations – The new HVAC Technology, act as the 2-wired or 4-wired Control and Communication Wiring which chained the outdoor units to all indoor units, thus creating an internal closed loop network.

We understand that Variable Refrigerant Flow (VRF) or Variable Refrigerant Volume (VRV) air conditioning system precisely regulating the temperature within commercial buildings therefore improve energy efficiency, occupant comfort, reduction in power utility consumption and overall operating cost.

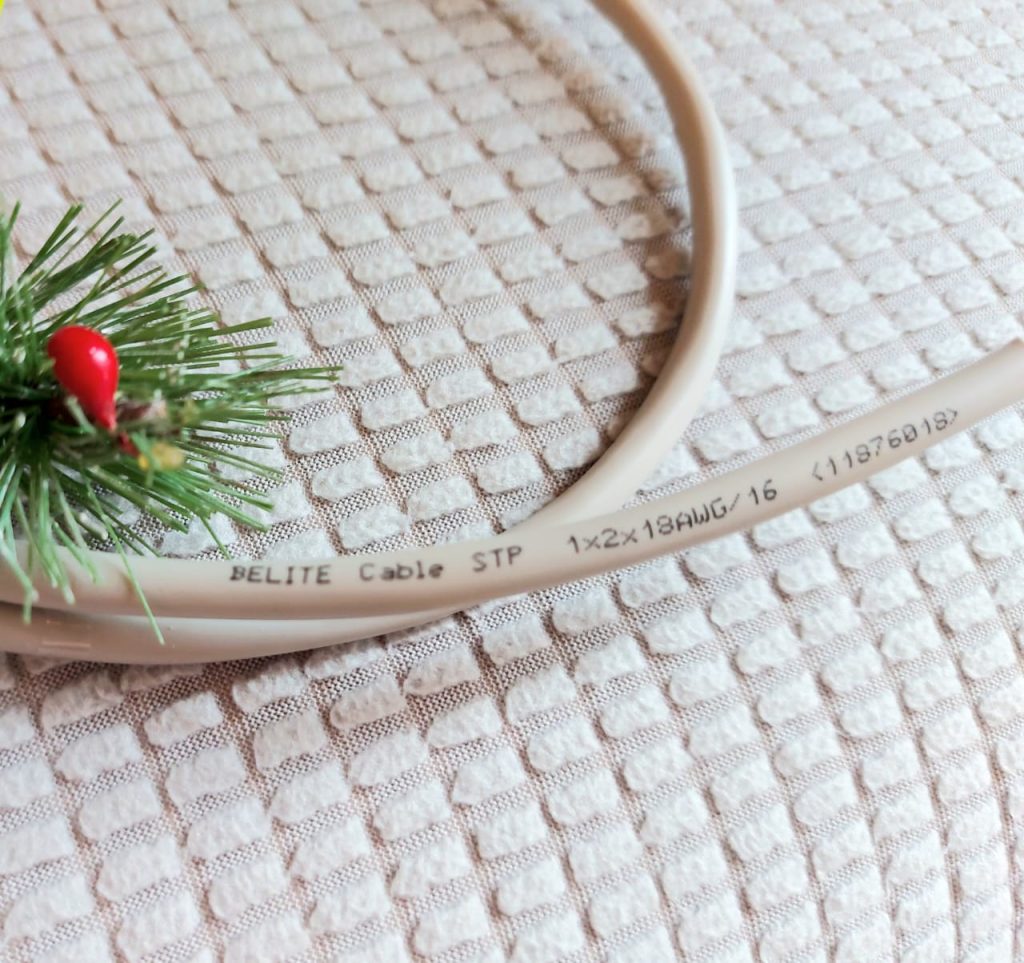

Screened Twisted Pair Cabling For Building Automation System

BMS Includes Mechanical System ( HVAC ), Electrical System ( Electrical DB’s/Lighting control & monitoring, Generator set and UPS ) and Utility Equipment ( Lifts, Fire Alarm System, Security System and Public address system ) and etc.

BELITE Cable is designed for Signal and Control cabling solutions in BMS. STP cables are connected between field devices and controllers for function such as water or oil level measurement, control ventilation level, temperature and humidity, etc.

BELITE Cable can be used as integration cable for third party device monitoring to collect data from different devices to monitor and generate reports.

BELITE Cable are also for different type of communication protocols such as RS 232, RS 422 and RS 485 Interface and various Building Automation Control & Monitoring System.

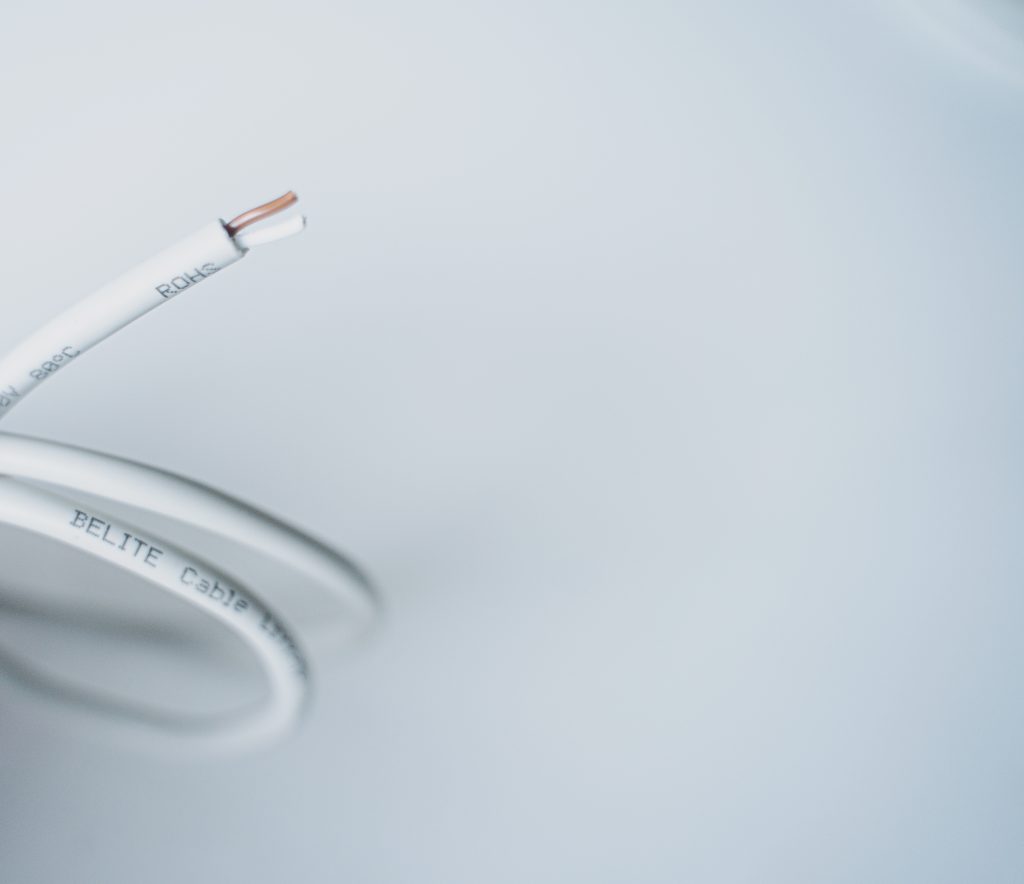

Screened Twisted Pair /Overall Cabling For Data Center

BELITE – The Internal Cabling from Master station to Controller and the linked sensor points where require flexibility & high degree of screening especially for analogue signal.

BELITE – The Internal wiring with Pair Screening that require optimum protection against external interference at medium and high frequencies.

BELITE – The Twisted Pair Cable widely used in Data Centre for their cost-effectiveness and compatibility with existing equipment.

BELITE – The Option of Low Smoke Halogen Free Cable where in any case of fire – Minimum formation of toxic gas is formed as protection of life.

BELITE – The Low Capacitance Overall Shielding with 100 / 120 ohm impedance where designed for RS 232, RS 422 & RS 485 Interface.

BELITE – The Unshielded Twisted Pair Cable is the option for Digital In/Out applications.
